一、 Description

    The current transformer of the type LDZB6 -10 is casting resin, full enclosed and wall through product. It is used for metering electric energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voluy;e lOkV.

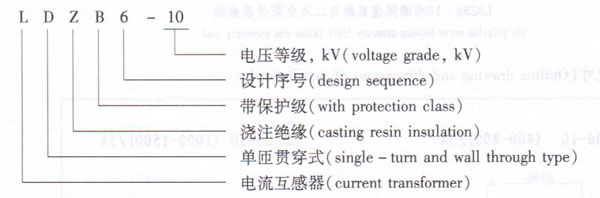

二、Type designation

三、Construction
      This current transformer is single - tum, wall through type and fully enclosed.  Its iron core is made of
fine quality magnetic material. Both the primary and secondary windings are insulated by epoxy,

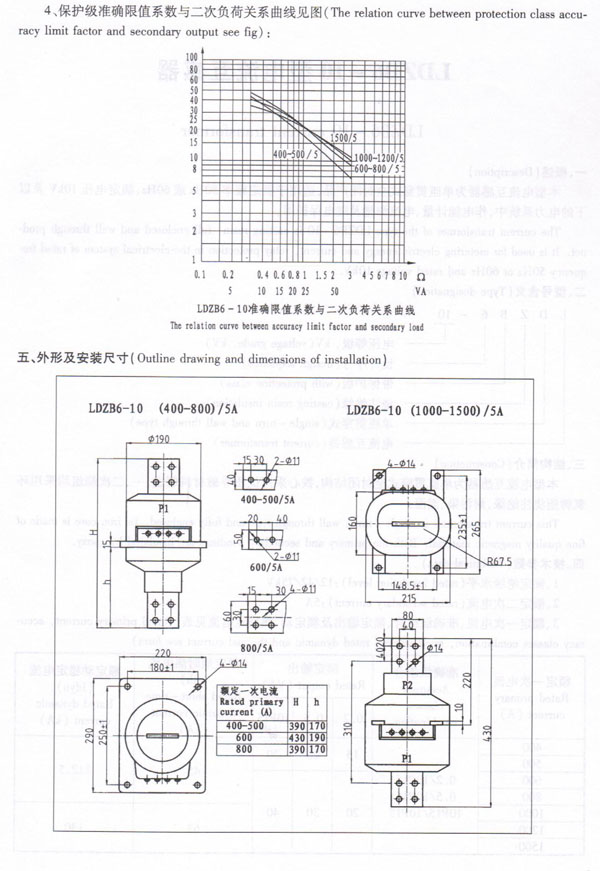

四、Technical data

    1、rated insulation level：12/42/75kV
    2、rated secondary current：5A

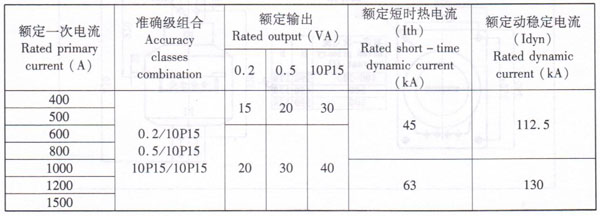

    3、Rated primary current，accuracy classes combination, rated output, rated dynamic and thermal current see form
