一、 Description
    The current transformer of the type LFS (B)  (Q) - 10 (Q) is casting resin, fully enclosed and post
type product. It is used for metering electric energy and current, relay protection in the electrical sysrem of rated frequency 50Hz or 60Hz and rated voltage lOkV. The transformers can be executed according to the standards IEC60044 -l and GB1208.

二、Type designation

三、Construction
    This type of current transformer is fully enclosed and post type.  It has a good ability of insulation,
moisture proof and antipollution. It is small and light. It can be installed at any place and any direction.

四、Technical data
    1、rated insulation level：12/42/75kV
    2、rated secondary current：5A, 1A

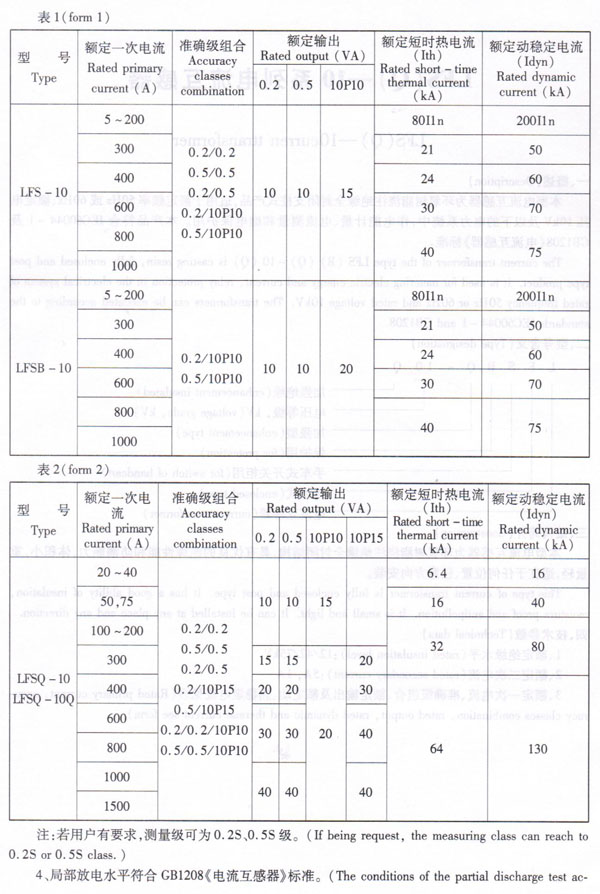

    3、Rated primary current, accuracy classes combination, rated output, rated dynamic and thermal current see form.
