1、Description
    The current transformers are casting resin insulated.wall through and fully enclosed, They are used for metering electric energy and current, relay protection in the electrical system up to rated frequency 50Hz or 60Hz and rated voltage lOkV.  The transformer can be executed according to the standards IEC60044 -1 and CB1208.

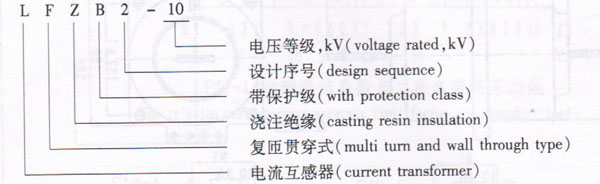

2、Type designation

3、Construction
    This current transformer is fully enclosed and wall through type. It is small and fixed convenient.  It is a new product for superseding the current transformer of the type LA - 10.IJU - 10.LFZ - 10.
4、Technical data
     l、 rated insulation level：12/42/75 kV；
    2、 rated secondary current：5A,1A；

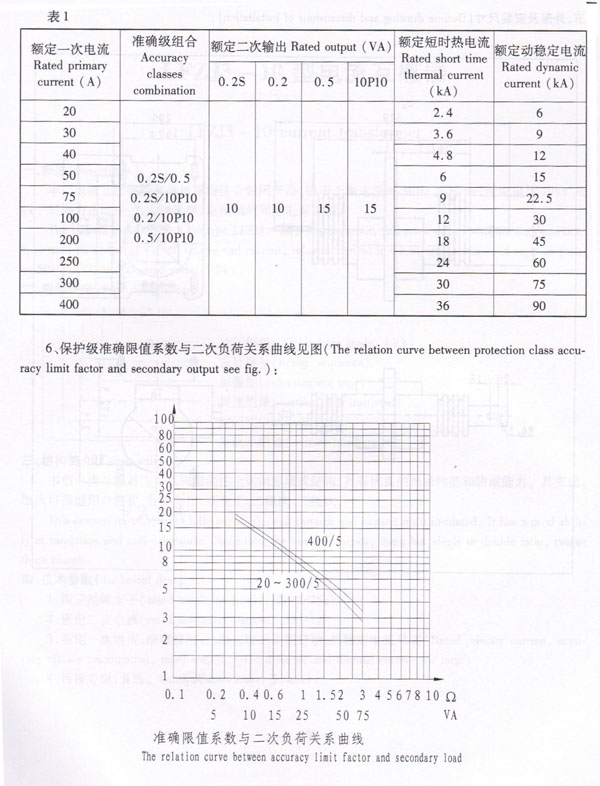

    3、Rated primary current, accuracy classes combination. rated output and rated dynamic current see the form):
    4、The conditions of the partial discharf;e test according to GB 1208<current transformer》 will be fulfilled without exception;
    5、pollution class:Ⅱclass
