1、Description
    The currem transformer is casting resin and fully enclosed type product.  It is used for metering electric energy and current, relay protection in the electrical system up to rated frequency 50Hz or 60Hz and rated voltage lOkV. The transformer can be executed according to the standards IEC60044-1 and CB1208.

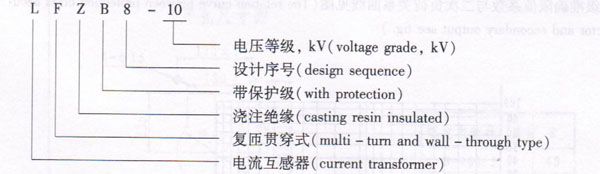

2、Type designation

3、ConstrucLion
    Tlus current transformer is fully enclosed and wall through type.  It has a good ability of insulation,moisture proof and antipollution. It is small and can be easily installed. It is a new product for superseding the current transformer of the type LFC-IO.
4、Technical data
    l、rated insulation level：12/42/75kV
    2、rated secondary current：5A,  1A
    3、Rated primary current,accuracy classes combination, rated output, dynamic and thermal current see the form
    4、pollution class: II class
    5、The condition of the partial discharge test according to GB1208<voltage transformer> will be
