一、 Description
    The current transformer of the type LFZJ3 - 10 is casting resin, full enclosed and wall through product.
It is used for metering electric energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage lOkV.

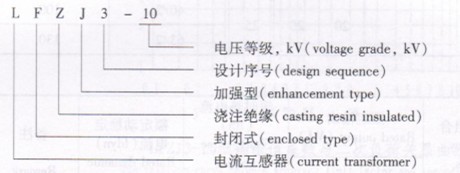

二、Type designation

三、 Construction
    This current transformer is fully enclosed, wall through and casting resin insulated.It has a good ability of insulation and anti - moisture.  According the custom's needs, there has single or double ratio, two or three classes.
四、 Technical data
    l、 rated insulation level：12/42/75kV
    2、rated secondary current：5A, 1A
    3、Rated primary current, accuracy classes combination, rated output, rated dynamic and thermal current see form
    4，antipollution class: Ilclass
