一、Description
    The current transformer of the type LFZJ - IO is casting resin, fully enclosed product.  It is used for
metering electric energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage lOkV.

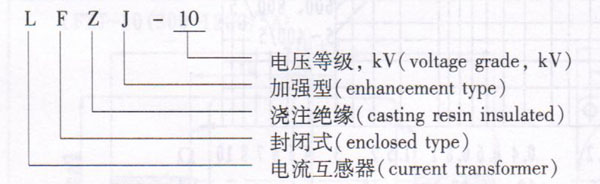

二、Type designation

三、Construction
    This current transformer is casting resin insulated. The voltage ratio bellows 200A of this current transformer is multi turn construction. The 300 - 1200A is single winding Lype.  The 1500 - 3000A is busbar type.
四、 Technical data
    1、rated insulation level：12/42/75kV
    2、rated secondary current：5A

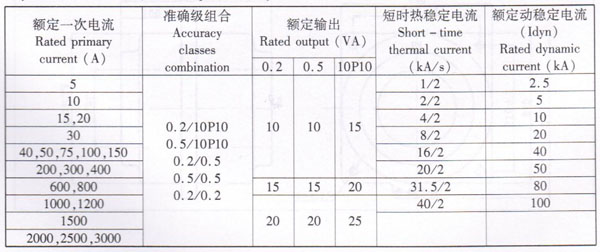

    3、Rated primary current, accuracy classes combination, rated output, rated dynamic and thermal current see form
