detailed introduce：LM23-35 current transformer
- Project description：
一、Description
The current transformer is indoor installation. It is specially designed for C - CIS of rated voltage

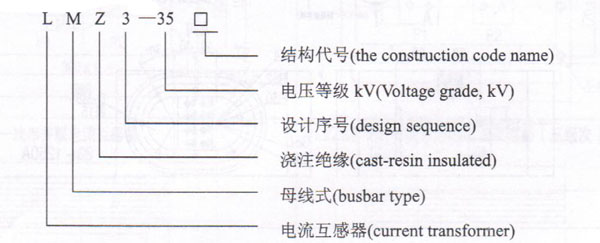

35kV. It is used for meeting electic energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage 35kV.二、Type designation
三、ConstructionThis current transformer is busbar type. Type middle hole is used for through the busbar or wire. The busbar and wire must have corresponding insulating layer.
四、Technical date
1、rated secondary current：5A,1A

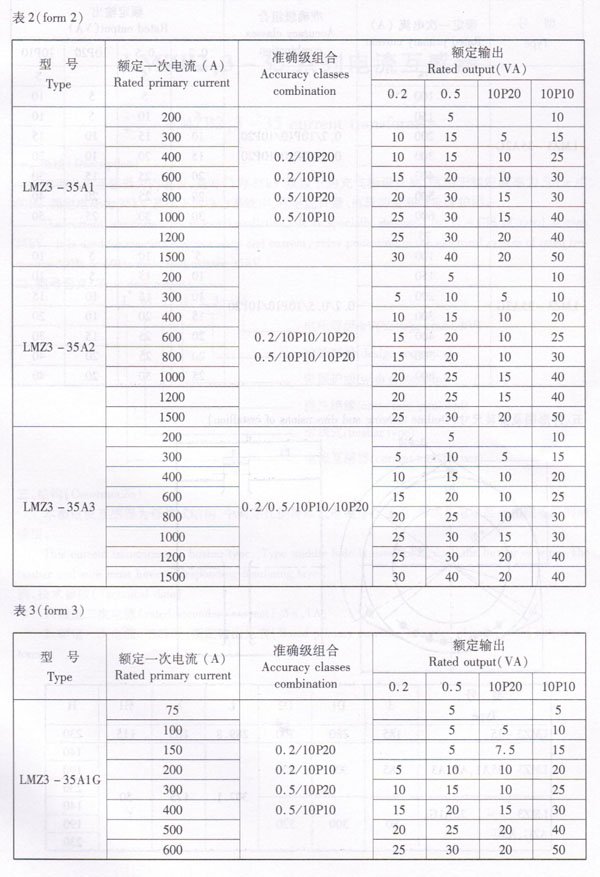

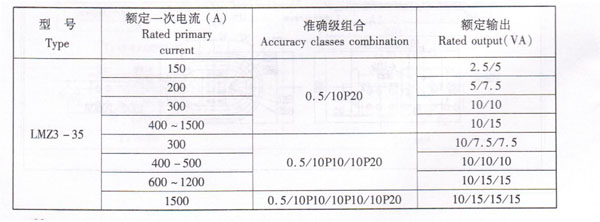

2、Rated primary current, accuracy classes,rated output see form
