一、Description
       The current transformer is indoor installation. It is specially designed for C - GIS of rated voltage
35kV.  It is used for meeting electic energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated ovltage 35kV.

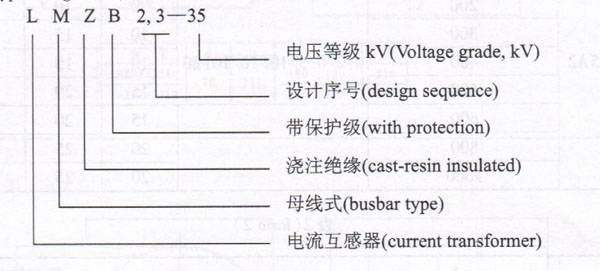

二、Type designation

三、Construction
      This current transformer is bushar type, Type middle hole is used for through the busbar or wire. The husbar and wire must have corresponding insulating layer.
四、Technical date
    1、rated secondary current：5A ,1A；
    2、 Rated primary current, accuracy classes, rated output see form
