一、Description
    The transformer is indoor installation. It is specially designed for C - CIS of rated voltage 35kV. It is used for meeting electic energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage 35kV

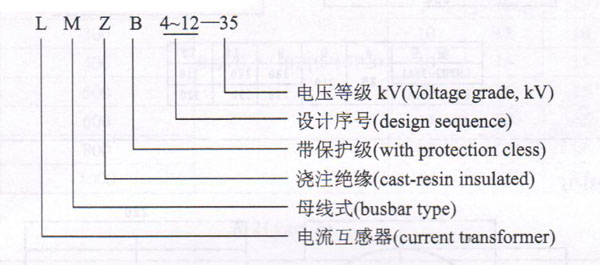

二、Type designation description

三、Construction
    The insulation box structure is applied for the current transformer. The secondary winding which is wound with high quality silicon - steel or alloy and high strength enameled wire is enclosed in the box,then
semi - manufacture goods will be finished with high quality self - extinguishing resin casting. The insulation
box is optimized ABS and with environmental conservation self - extinguishing characteristic.
四、Technical data
    1、Strandard:  IEC60044 -1 GB1208

    2、Basic insulated level:0. 72/3KV
    Because the cable protects the primary main insulation, so, the insulation characteristics of secondary winding are only examined.
    3、Insulated class:E
    4、Self - extinguishing class:V -0

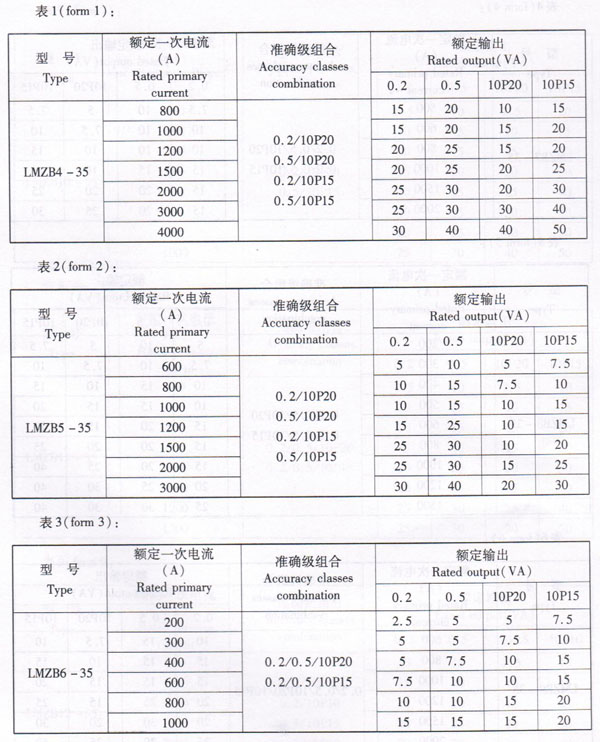

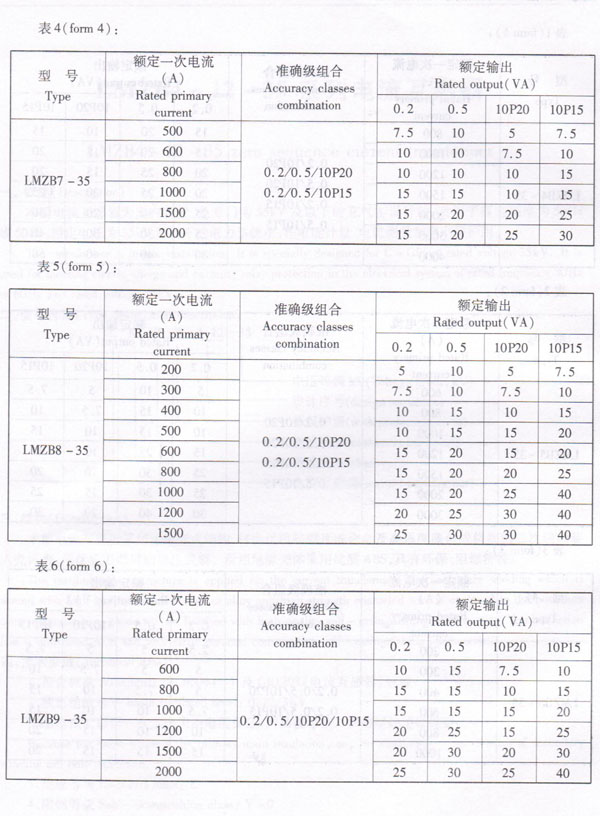

    5、 technical data form
