一、Description
    The current transformer of the type LMZB8 - 20 is casting resin, full enclosed and busbar type.  It is used for metering electric energy and current, relay protection in the electrical svstem of rated frequency 50Hz or 60Hz and rated voltage 20kV. The transformers can be executed according to the standards IEC60044 -1 and CB1208.
二、Type designation

三、 Construction
    The current transformer is casting resin insulated, fully enclosed and busbar t\pe. There is electric
scroll with bioelectric potential wires in the bus hole.  When hi installed, connecting the bioelectric potential
wires in the bus hole.
四、Ttchnical  data
    1、rated insulation level: 24/65/125kV
    2、rated insulation level: 5A, 1A

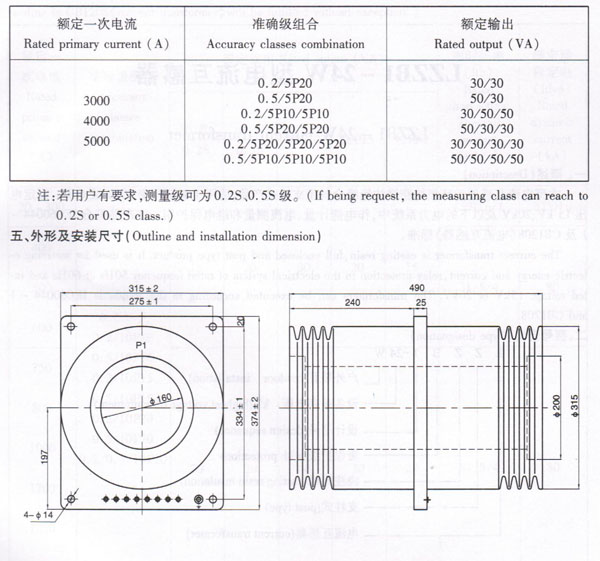

    3， rated primary current, accuracy classes combination,rated output see form

    4、 antipollution class: class  lI
