一、Description
    The current transformer is casting resin,fully enclosed,busbar and wall - through type product.It is
used for metering electric energy and current, relay protection in the electrical system up to rated frequency 50Hz or 60Hz and rated voltage IOkV. The transformer can be executed aceording to the standards IEC60044 -1 and GB1208.
二、Type  designation

三、Construction
    This current transformer is casting resin insulated, fully enclosed and busbar type. There is eletric
scroll with bioelectric potential wires in the hus hole.  When bi installed, connecting the bioelectric potential wires in the bus hole.
四、Technical  data
    t、rated insulation level：12/42/75kV
    2、rated secondary current：5A,1A

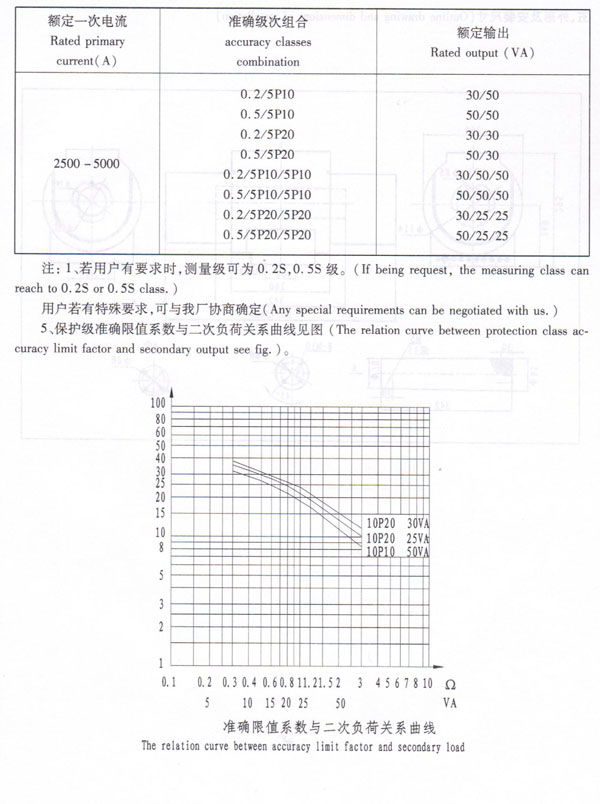

    3、Rated primary current, accuracy classes combination and rated output see the form
  4、pollution class:  Ilclass
