一、Description
      The current transformer of the type LMZJ - loQ is casting resin, fully enclosed and husbar type product.  It is used for metering electric energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage lOkV. The transformers can be executed according to the standards IEC60044 -1 and GB1208.

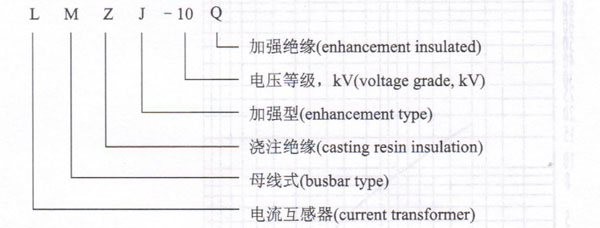

二、Type designation


三、三、Construction

    The type of current transformers are casting resin insulated, fully enclosed and busbar type. The ironcore is circular and the secondary winding goes around the core before casting by epoxy. The casting body is fixed on the wall - through mounting board.
四、Technical  data
    1、rated insulation level：12/42/75kV
    2、rated secondary：5A
    3、Rated primary current, accuracy classes combination and rated output see form)
