一、Instroduction
       This series of transformer is indoor installation. It is specially designed for C - GIS of rated voltage 35kV.  It is used for meeting electic energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage 35kV.

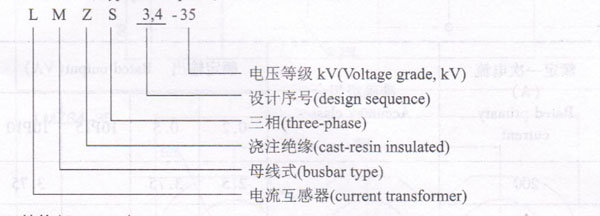

二、Type description


三、Structure
      The insulation box structure is applied for the current transformer. The secondary winding which iswound with high quality silicon - steel or alloy and high strength enameled wire js enclosed佃the box,then semi - manufacture goods will be finished with high quality self - extinguishing resin casting. The insulation box is optimized ABS and with environmental conservation self - extinguishing characteristic.

四、Technical  data
    1、Strandard: IEC60044 -1，GB1208

    2、Basic insulated level: 0.72/3KV
     Because the cable protects the primary main insulation, so, the insulation characteristics of secondary winding are only examined,
    3、Insulated class:E
    4、Self - extinguishing class:V -O

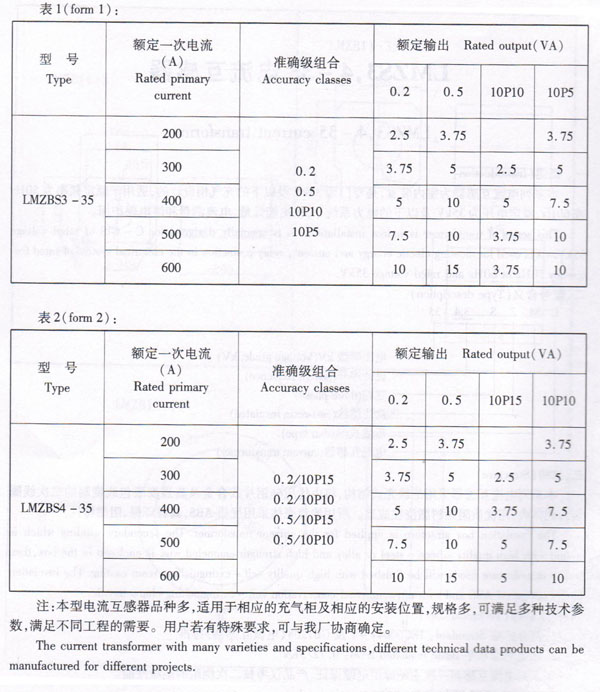

    5、technical data form
