一、Description
      The current transformers of the type LQZBJ - 10Q and LQZBJ8 - 10 are casting resin, full enclose and post type producc.  It is used for metering electric energy and current, relay protection in the electne system of rated frequency 50Hz or 60 Hz and rated voltage lOkV. The design is suitable for working condition of small and short Lime current.  The transformers can be executed according to the standards IEC60044 -1 and CB1208.

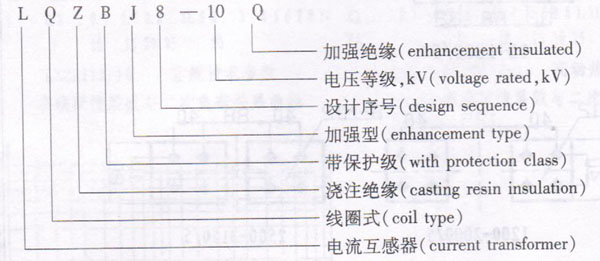

二、Type designation

三、Construction
  This current transformer is fully enclosed and post type.  It has a good ability of antipollution and moisture - proo. It can be mounted in any position you like.
四、Technical data
    1、rated insulation level：12/42/5 kV；
    2、rated secondary current：5A,1A;

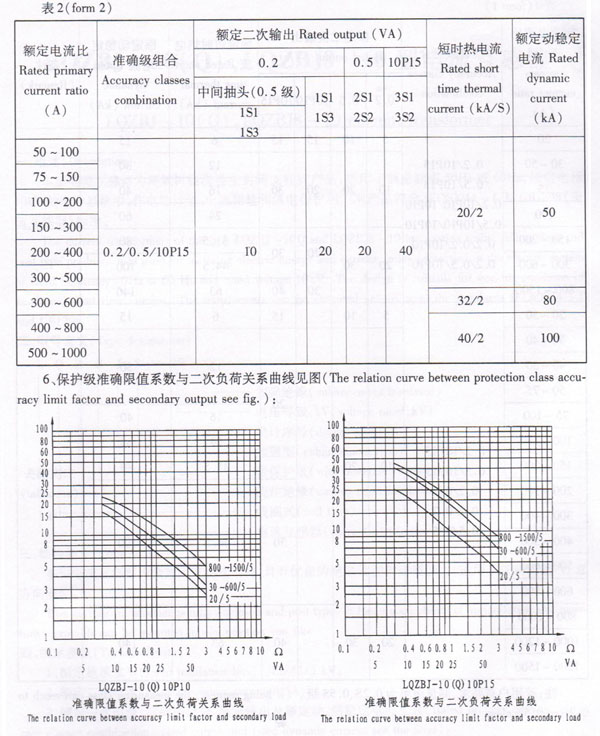

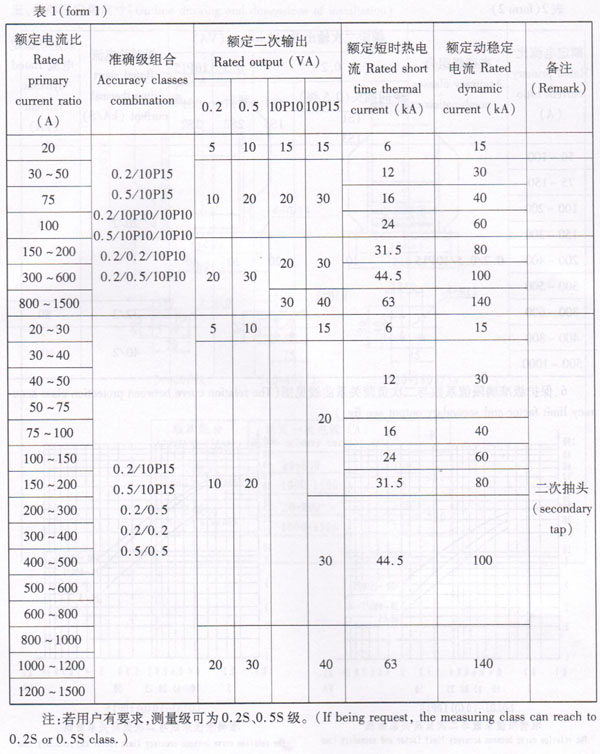

    3、Rated primary current, accuracy classes combination. rated output and rated dynamic current see the form:
    4、The conditions of the partial discharge test according to GB 1208<:cunent transformer> will be fulfilled without exception;
    5、 pollution class:  Ilclass
