一、 Description
    The current transformer of the type LMZB7 - 10GYWl is casting resin insulated, fully enclosed and wall through product. It is used for metering electric energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage lOkV.

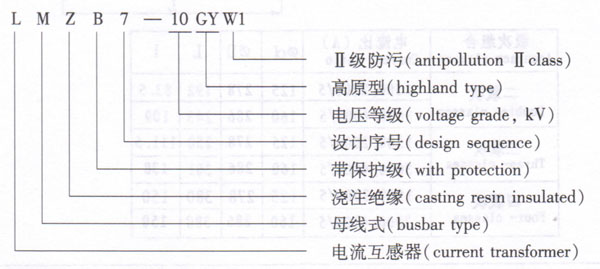

二、 Type designation

三、 Construction
    This current transformer is single winding, wall through type and fully enclosed.  Its iron core is made of fine quality magnetic material. Both the primary and secondary windings are insulated by epoxy. There is an erecting board with four holes on the casting piece.
四、 Technical data
    l、 rated insulation level：12/42/75kV
    2、rated secondary current：5A

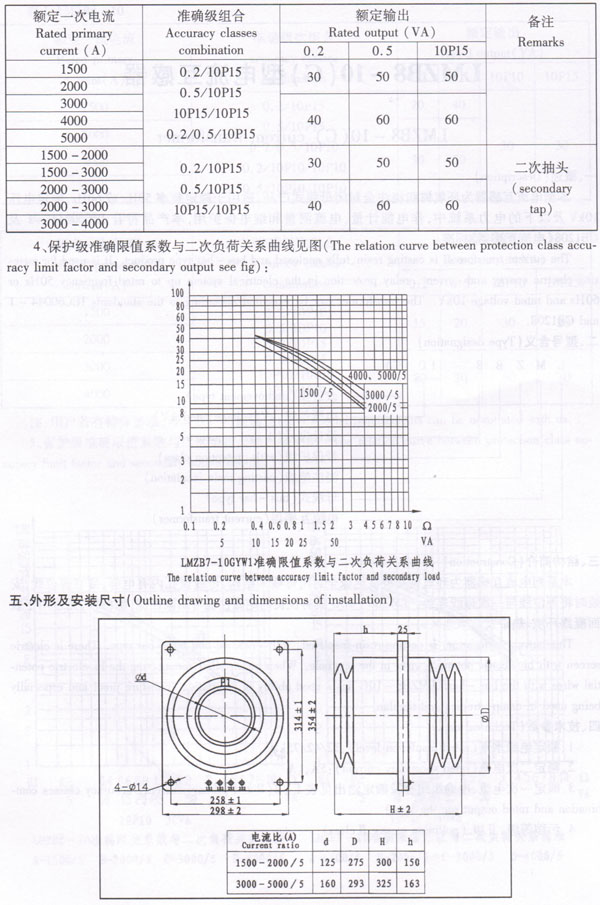

    3、Rated primary  and rated output see form
