detailed introduce：LZJC-10(G) current transformer
- Project description：
一、Description
The current transformer is casting resin, fully enclosed and post type product. It is used for meteringe.
lectric energy and current, relay protection in the electrical system up to rated frequency 50Hz or 60Hz and rated voltage lOkV. The transformer can be executed according to the standards IEC60044 -l and CB1208.

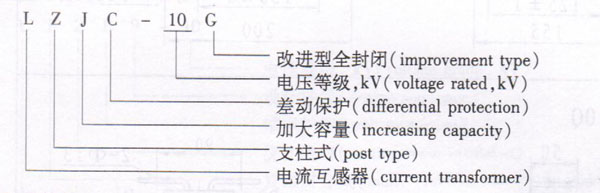

二、Type designation
三、Construction
The current transformer is casting resin, fully enclosed and post type. It is small and light. It can be mounted in any position you like.
四、Technical data
l、rated insulation level：12/42/75kV
2、rated secondary current：5A, 1A

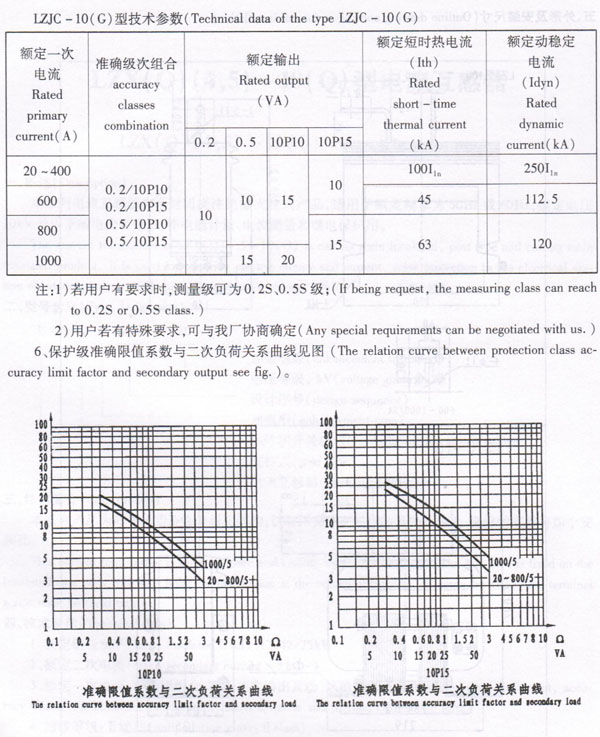

3、Rated primary current, accuracy classes combination, rated dynamic and thermal current see the form
4，pollution class: Ilclass
