一、 Description
      The current transformer of LZX( Q)4、5 - 10( Q)  is casting resin insulated, post type and castinS resin insulated product. It is used for metering electric energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage lOkV

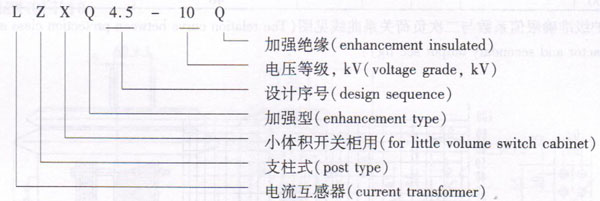

二、 Type designation

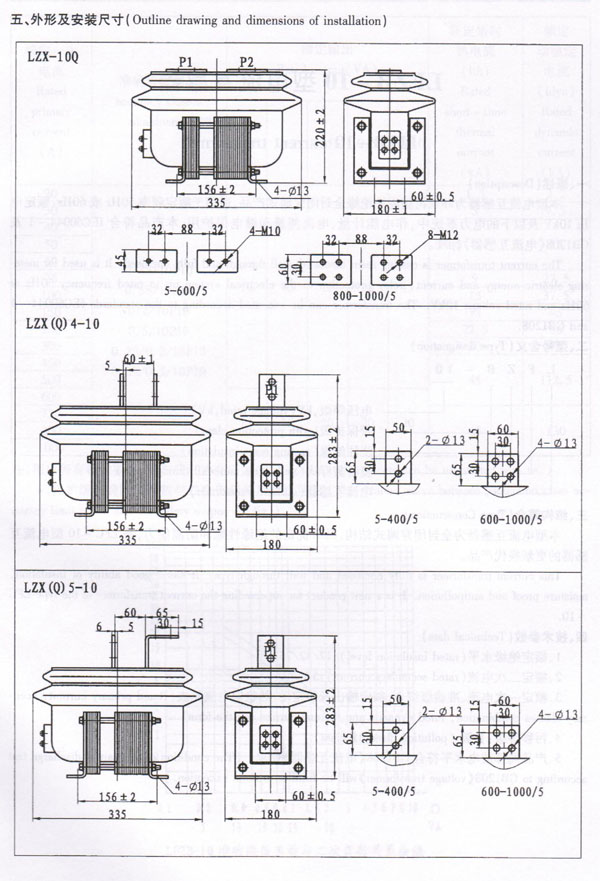

三、Construction
    This current transformer is semi enclosed and casting resin insulated type.  The iron core is fixed on the
insulated cast bodv with four holes for installation at the bottom of the clip.Ⅱheing installed, the terminal
screw must be fixed tightly.
四、Technical data
    1、rated insulated level：12/42/75kV
    2、rated secondary current：5A

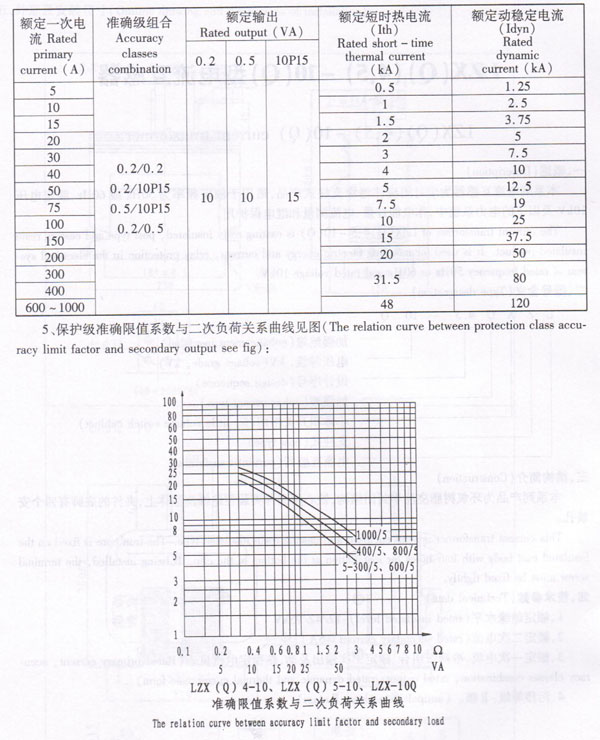

    3、Rated primary current, accuracy classes combination, rated output, rated dynamic and thermal current see form
  4．antipollution class: II class
