一、Description
    The current transformer is casting resin.fully enclosed and bus - bar type product.  It is used for metering electric energy and current, relay protection in the electrical system up to rated frequency 50Hz or 60Hz and rated voltage lOkV.  The transformer can be executed according to the standards IEC60044 -1 and GB1208.

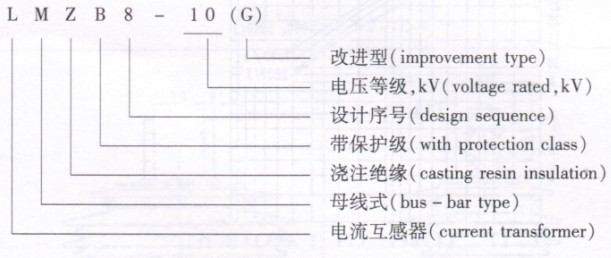

二、Type designation

三、 Construction
    This current transformer is casting resin insulated, fully enclosed and bus - bar type.  There is electric screen with bioelectnc potential wires in the bus hole. When be installed, connecting the bioelectric potential wires with the bus -bar.  LMZB8 - 10G has a good ability of imsulation.  moisture proof and especially being used in damp, tropics and highlan.
四、 Technical data
    1、 rated insulation level：12/42/75kV
    2、 rated secondary current：5A,1A

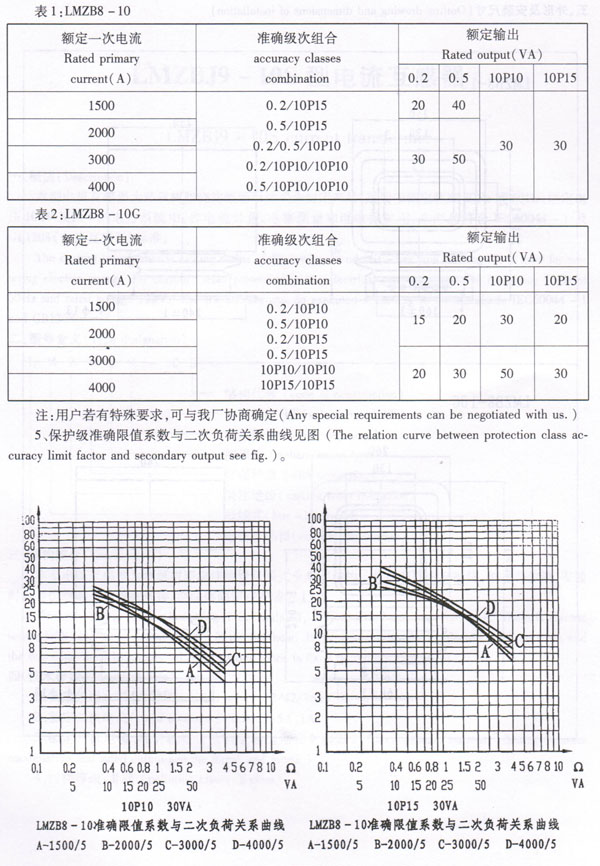

    3、Rated primary current,  accuracy classes combination and rated output see the form
  4. pollution class:  Ⅱ class
