detailed introduce：LZZ(Q)(J)B6-10(Q)current transformer
- Project description：
一、Description
The current transformer of the type LZZ< Q)(J)B6 - 10( Q)is castinS; resin and fully enclosed. It is

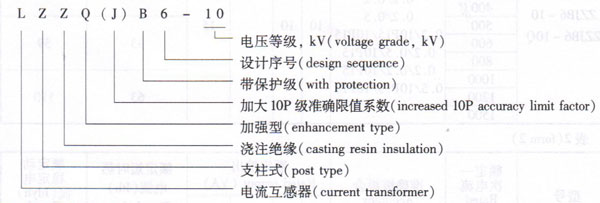

used for metering electric energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage lOkV. The transformers can be executed according to the standards IEC60044 -1 and GB1208.二、Type designation
三、ConstructionTlus current transformer is fully enclosed and post type. It has 8 good ability of antipollution and moisture - proof.It can be mounted in any position you like. If being installed, the terminal screw must be fixed tightly.
四、Technical data
1、rated insulation level：12/42/75kV
2、rated secondary current：5A, 1A
3、Rated primary current, accuracy classes combination, rated output, rated dynamic and thermal current see form
4、The conditions of the partial discharge test according to GB1208<current transformer>will be fulfilled without exception.
5、antipollution class：II class
