一、Desctiption
   The current transformer is casting resin,full enclosed and post type product. It js used for metering electric energy and current,relay protection jn the electrical system of rated frequency 50Hz or 60Hz and rated vohage 15kV or 20kV. The transformers can be executed according to the standards IEC60044 -1 and GB1208.

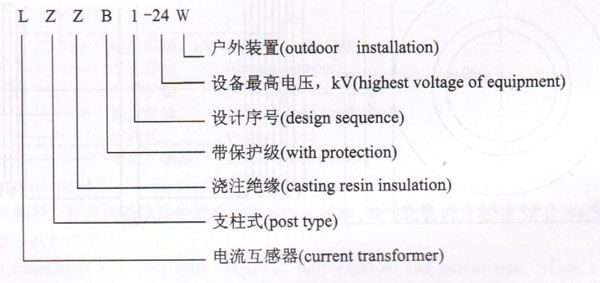

二、Type designation


三、Construction

    The type of current transformer is a prop shape product. It is made by outdoor resin( made in Switzer.land ciba,the type is CW5837).The product has much merit,such as:electne arc resistance,ultraviolet raand aging resistance long working time.

四、
    1、ambient temperature: -25CC～+400C;If being request,the temperature can reach to -400C
    2、antipollution class：classⅣ
五、Technical data
    1、rated insulation level：24/65/125kV
    2、rated secondary current：5A,1A

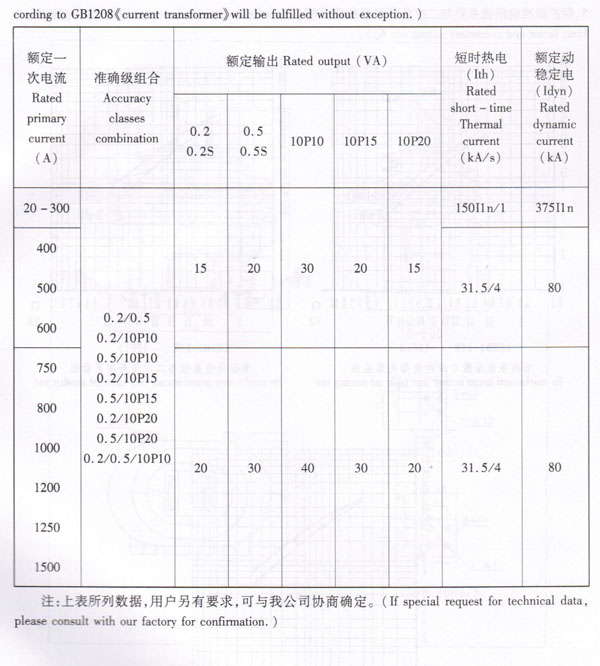

    3、rated primary current,accuracy classes combination,rated output,rated short - time current see form
    4、The conditions lf the partial discharge test
