detailed introduce：LZZB8 - 40. 5CQ/198 current transformer
- Project description：
一、Description

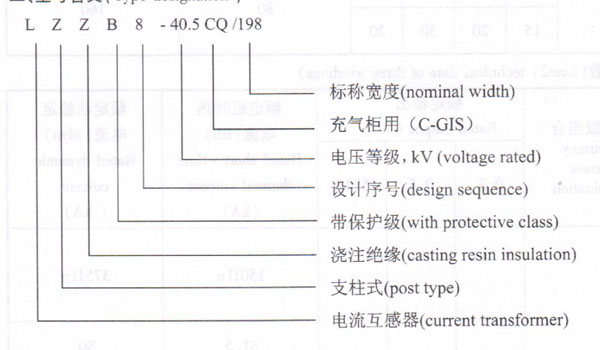

The current transformer is full cast - resininsulated.It is used for power measurement.current and relay protection in electrical system with rated frequency 50Hz or 60Hz, rated voltage 35 kV and below in C- CIS The transformers can be executed according to the standards IEC60044 -1 and GB1208.二、Type designation
三、Construction
The current transformer is full enclosed and post type. It is small and light. It is a ideal product matching with C - GIS - 35.四、Condicion of use
When working, the product must be in SF6 gas with rated pressure is 0.04 Mpa.五、Technical data
1、rated insulation level：40.5/95/185kV；
2、rated secondary current：5A,1A；

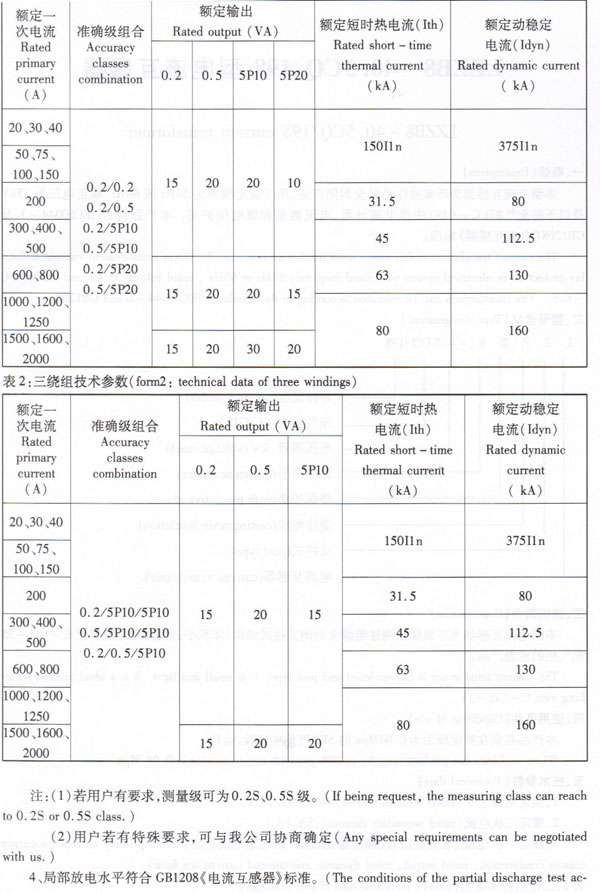

3、Rated primary current,accuracy classes combination, rated output, rated dynamic and thermal current see form):
forml：technical data of two windings
