detailed introduce：LZZB8-35C/200(168) current transformer
- Project description：
一、Description

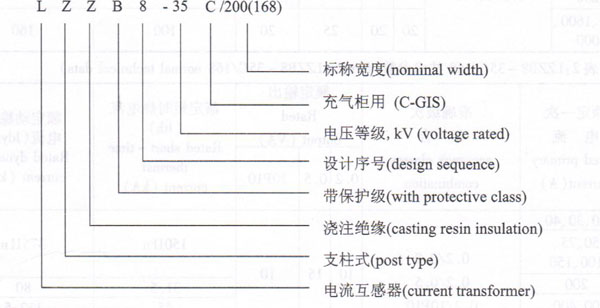

The current transformer is full cast - resin insulated.It is used for power measurement.current and relay protection in electrical system with rated frequency 50Hz or 60Hz, rated voltage 35 kV and below in C- GIS. The transformers can be executed according to the standards IEC60044 -l and CB1208.二、Type designation
三、Construction
The current transformer is full enclosed and post type. It is small and light. It is a ideal product matching with C - GIS - 35.四、Condition of use

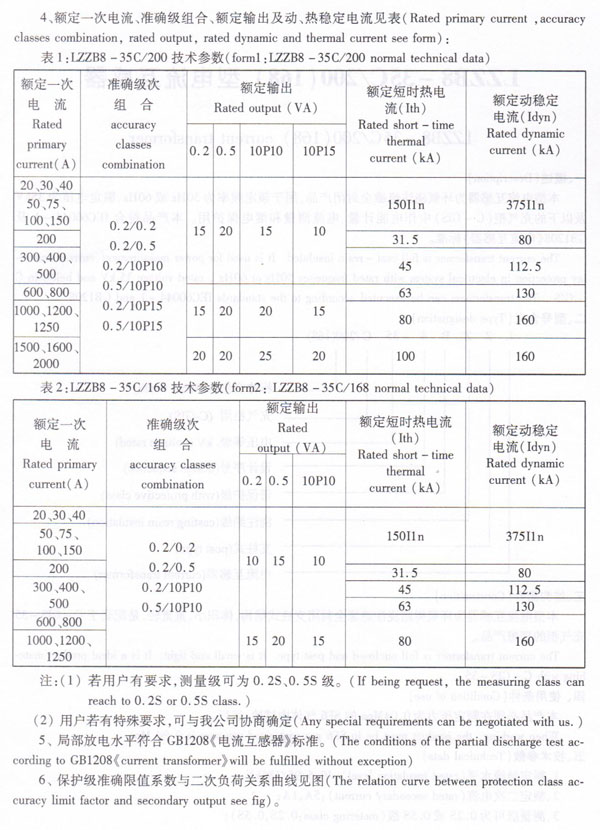

When working, the product must be in SF6 gas with rated pressure is 0.04 Mpa.五、Technical data
1、rated insulation level：40. 5/95/185kV；
2、rated secondary current：5A,1A;
3、metering class:0.2S,0.5S；
