一、Description
    The current transformer of the type LZZB - 10 is casting resin and full enclosed.  It is used for metering electric energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage lOkV. The transformers can be executed according to the standards IEC60044 -l and GB1208.

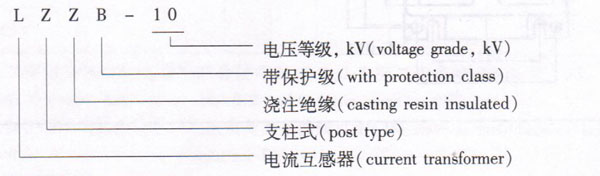

二、Type designation

三、Consiruction

    The current transformer is full enclosed and post type. It is small and light. The primary outlet should be fixed for the reliable connections.

四、Technical data
    1、rated insulated level：12/42/75kV
    2、rated secondary current：5A，1A

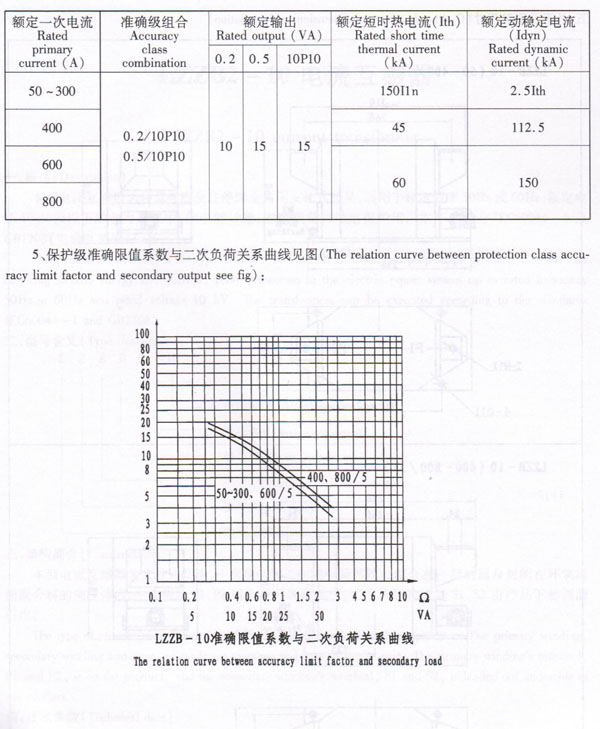

    3、rated primary current，accuracy classes combination, rated output, rated dynamic and thermal current see form
