一、Description

    The current transformer of the type LZZBJ9 - 10A6G is casting resin and fully enclosed product.  It is used for metering electric energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage lOkV. The transformers can be executed according to the standardsIEC60044 -l and GB1208.

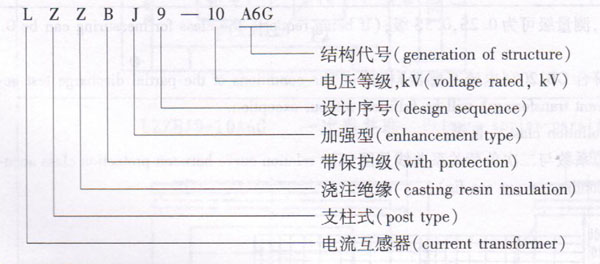

二、Type designation

三、Constniction

    This current transfarmer is fully enclosed and post type.  It has a good ability of antipollution and mois-

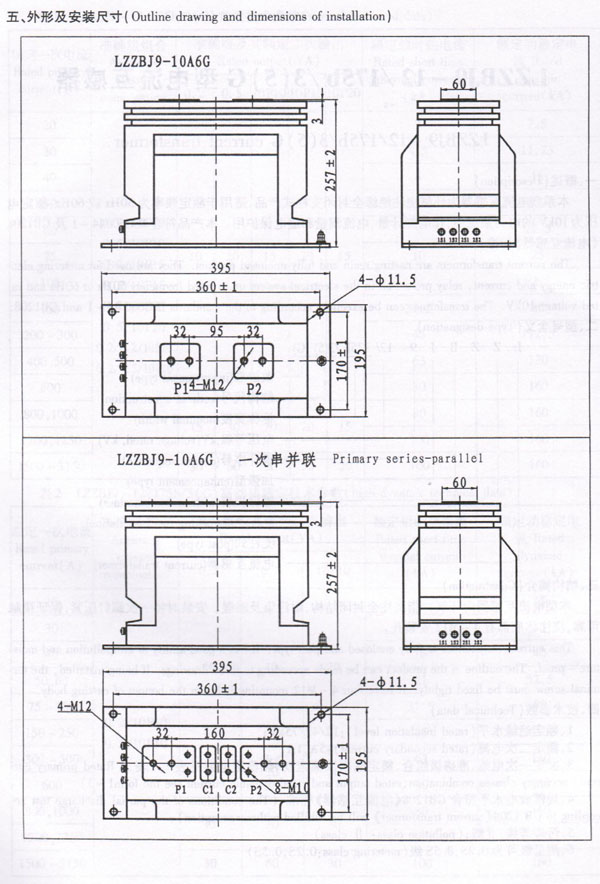

ture - proof.  The outline of the product can be made accordinf;; to three drawings.  If being installed, the ter一
minal screw must be fixed tightly.The transformer has two types,single ratio and double ratio.The primary
winding of single ratio transformer is fixation type.  The primary winding of double ratio one is series and
parallel. See fig, when series, it is l00/5A; when parallel, it is 200/5A.

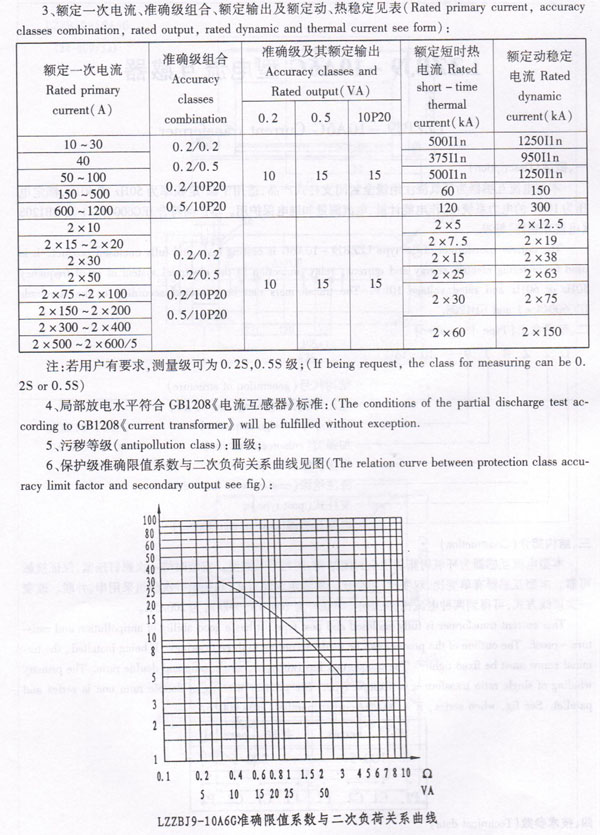

四、Technical data
  1、rated insulation level：12/42/75 kV
  2、rated secondary current：5A，1A；
