detailed introduce：LZZBJ12-10 current transformer
- Project description：
一、Description
The current transformer of the type LZZBJ12 - 10 is casting resin and fully enclosed product. It is used for metering electric energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage lOkV, The transformers can be executed according to the standards IEC60044 -1 and CB1208.

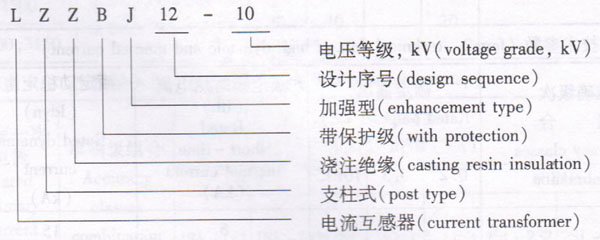

二、Type designation
三、Construction
This current transformer is fully enclosed and post t)'pe. It has a good ability of antipollution and moisture - proof. If being installed, the terminal screw must he fixed tightly.
四、Technical data
1、rated insulated level：12/42/75kV
2、rated secondary current：5A, 1A

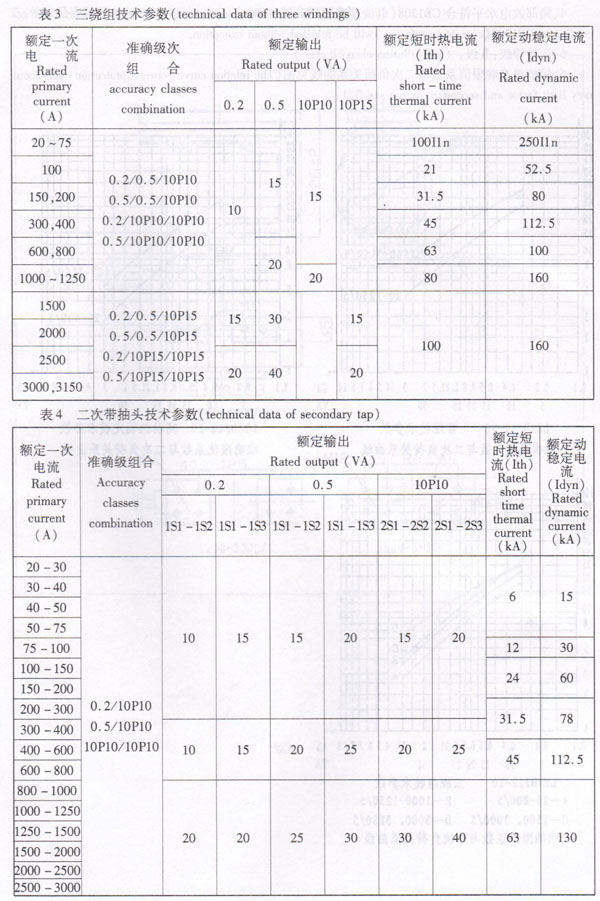

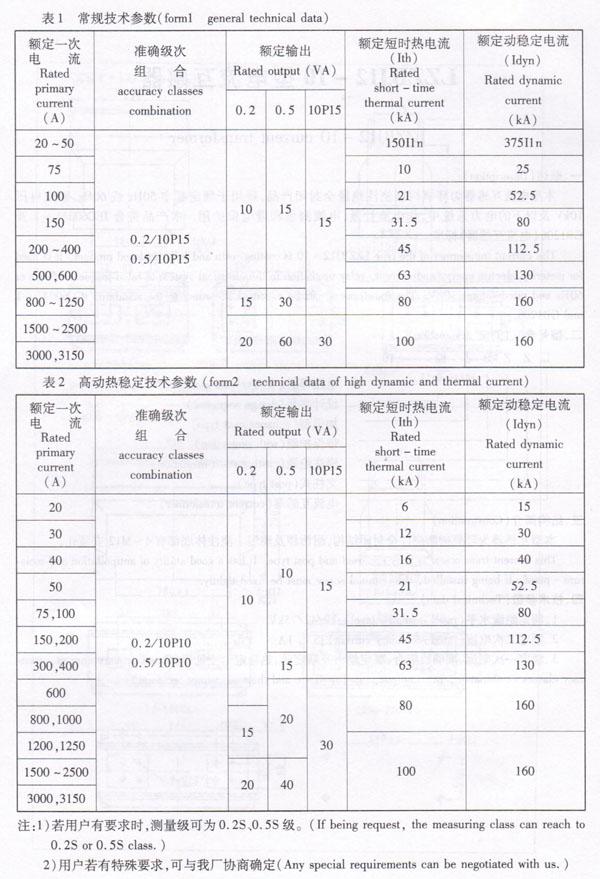

3、Rated primary current, accuracy classes combination, rated output, rated dynamic and thermal current see form:
