detailed introduce：LZZJ-10(C)(Q) current transformer
- Project description：
一、Description
The current transformer of the type LZZJ - 10( Q) is casting resin and fully enclosed product. It is

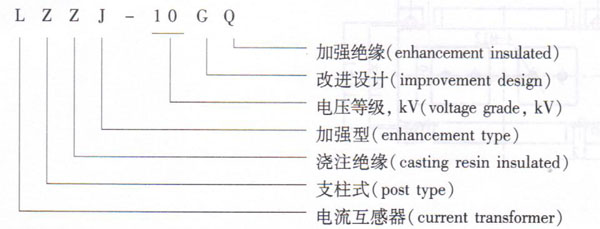

used for metering electric energy and current, relay protection in the electrical system of rated frequency 50Hz or 60Hz and rated voltage lOkV. The transformers can be executed according to the standards IEC44600 -1 and GB1208.二、Type designation
三、Construction
The current transformer is full enclosed and post type. It is small and light. There are four mounting hole of @12 in bottom, but the primary outlet should be flxed for the reliable connections. There are one or
two ratios.四、Technical data
1、rated insulated level：12/42/75kV
2、rated secondary current：5A, 1A

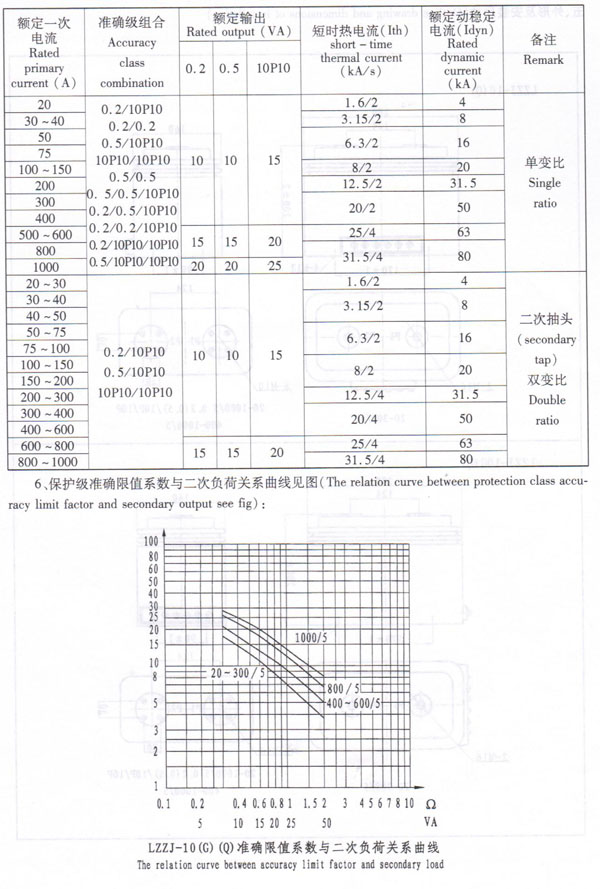

3、rated primary current, accuracy classes combination, rated output, rated dynamic and thermal current see form
4、The conditions of the partial discharge test according to GB1208<current transformer》will be fulfilled without exception.
5、antipollution class：II class
