detailed introduce：LZZQB8-10W2 current transformer
- Project description：
一、Description
The currem transformers are casting resin and fully enclosed product. They are used for metering electric energy and currem, relay protection in the electrical system up to rated frequency 50Hz or 60Hz and rated voltage lOkV. The transformer can be executed according to the standards IEC60044 -1 and GB1208.

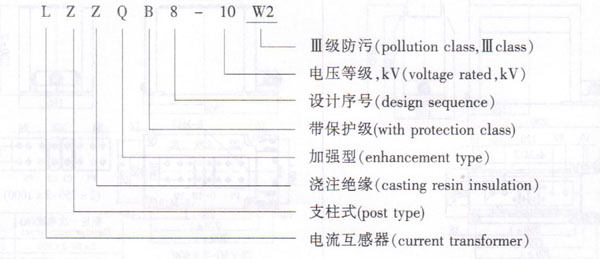

二、Type designation
三、ConstructionThis current transformer is fully enclosed and post type. It has a S;ood ability of insulation,moisture proof and it can be used in high altitude.lf being installed,the terminal screw must be rixed tightly.
四、Technical data
1、rated insulation level：12/42/75 kV;
2、rated secondary current：5A,1A;

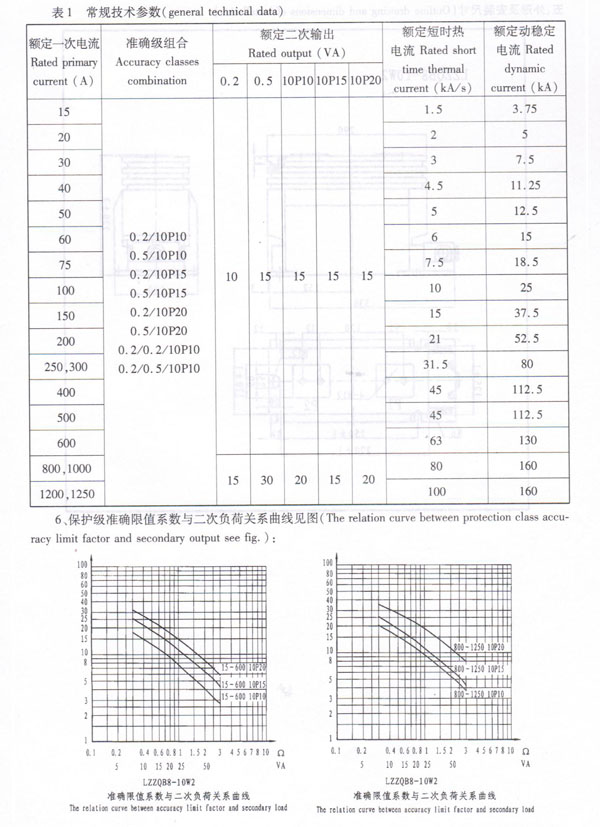

3、Rated primary current, accuracv classes combination rated output and rated dynanuc current see the form:
4、The conditions of the partial discharge test according to CB 1208<current Lransformer》 will be fulfilled without exception;
5、pollution class:Ⅲclass
